Torque Limited in forward and Extreme Torque in reverse

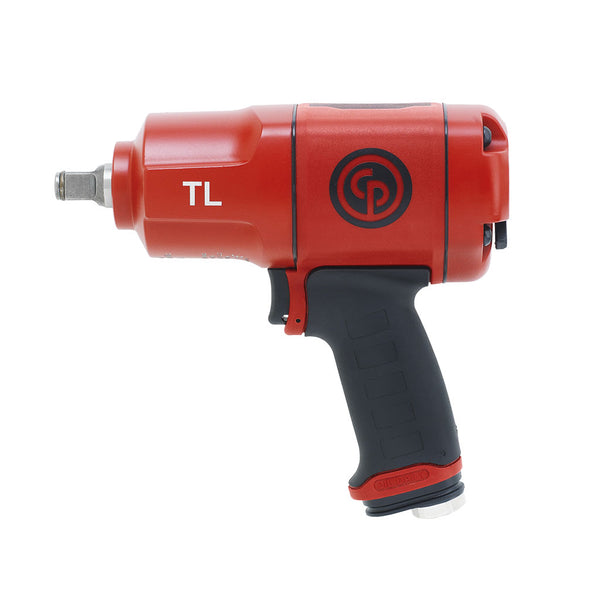

1/2" composite impact wrench with friction ring socket retainer
2 setting positions : one in Reverse and one Torque Limited in forward
60/70 ft. lbs. - 90/100 Nm in torque limited position in forward
920 ft.lbs - 1,250Nm of maximum torque in reverse
Aluminum clutch & rear housings
Thermo-plastic rubber injected in housing - Resistant to most chemicals used in workshops
Universal & durable twin hammer mechanism
Full teasing trigger
360° swivel air inlet
The CP7748TL series is intended to be used as a “snugging” tool prior to final tightening with a calibrated torque wrench to reach the car manufacturer’s specified torque rating for wheel assembly.
Torque results vary greatly depending on the type of wheel, air pressure, run time and many other factors.
2 setting positions : one in Reverse and one Torque Limited in forward
60/70 ft. lbs. - 90/100 Nm in torque limited position in forward
920 ft.lbs - 1,250Nm of maximum torque in reverse
Aluminum clutch & rear housings
Thermo-plastic rubber injected in housing - Resistant to most chemicals used in workshops
Universal & durable twin hammer mechanism
Full teasing trigger
360° swivel air inlet
The CP7748TL series is intended to be used as a “snugging” tool prior to final tightening with a calibrated torque wrench to reach the car manufacturer’s specified torque rating for wheel assembly.
Torque results vary greatly depending on the type of wheel, air pressure, run time and many other factors.
Torque limited in forward: 60/70 ft. Lbs. - 90/100 Nm
Full power in reverse
One Hand Operation: 2 power setting positions
Insulation & Comfort: Contoured comfort grip handle instead of TPR injected in handle
Low sound level
Suited for all light vehicle tire changing applications
Full power in reverse
One Hand Operation: 2 power setting positions
Insulation & Comfort: Contoured comfort grip handle instead of TPR injected in handle
Low sound level
Suited for all light vehicle tire changing applications
| Box dimensions | 210*206*75 mm |
| Over carton | 455*230*418 mm |
| Length | 200 mm |
| Net weight | 2.2 kg |
| Side to center | 38 mm |
| Average air consumption | 2 1/2 l/s |
| Actual air consumption | 10 l/s |
| Air inlet thread size | 1/4" |
| Min. hose size | 10 mm |
| Sound pressure | 86 db(A) |
| Sound Power | 97 db(A) |
| Vibration ISO | ISO-28927-2 |
| Vibration | 4.8 m/s² |
| Vibration uncertainty (K) | 1 1/2 m/s² |
| Handle type | Pistol |
| Square drive | 1/2" |
| Working Torque Range (fwd) | 90 - 140 Nm |
| Maximum Torque (reverse) | 1250 Nm |
| Free speed | 8200 rpm |
| Blows per minute | 850 |
| Power/weight ratio | 568.2 Nm/kg |
| Socket retainer | Friction ring |
| Clutch type | Twin Hammer |
