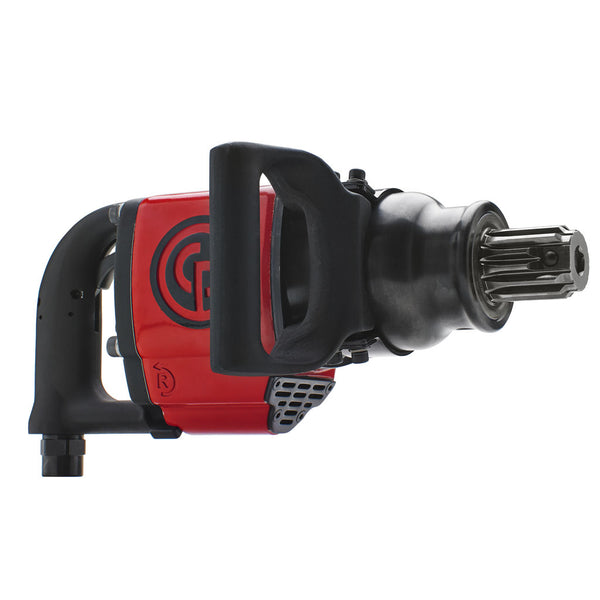

The Super Industrial in Renewed Design
Super Industrial impact with spline #5
Reliable 2-jaw clutch with the highest Blows per Minutes
Full Teasing (inside) trigger with durable reverse
Durable aluminum body & indestructible steel clutch housing
Compact 3-part construction & easy maintenance
Hole type socket retainer with O-ring
360° adjustable D-type side handle
Steel internal trigger
Reliable 2-jaw clutch with the highest Blows per Minutes
Full Teasing (inside) trigger with durable reverse
Durable aluminum body & indestructible steel clutch housing
Compact 3-part construction & easy maintenance
Hole type socket retainer with O-ring
360° adjustable D-type side handle
Steel internal trigger
Best impact to loosen big bolts on very demanding industries thanks to Spline #5
Spline #5: avoid loss of torque, reduce vibrations, increase durability of anvil
Operator comfort and control thanks to perfect ergonomic design even at VERY high torque
Progressive torque thanks to the 2-Jaw clutch
Unmatched durability with reliable mechanism & durable housing
Ideal for Heavy Industrial Maintenance and Production applications
Spline #5: avoid loss of torque, reduce vibrations, increase durability of anvil
Operator comfort and control thanks to perfect ergonomic design even at VERY high torque
Progressive torque thanks to the 2-Jaw clutch
Unmatched durability with reliable mechanism & durable housing
Ideal for Heavy Industrial Maintenance and Production applications
Box dimensions | 505x240x145 mm |
Length | 360 mm |
Net weight | 10.4 kg |
Side to center | 46 mm |
Actual air consumption | 32 l/s |
Free speed air consumption | 55 l/s |
Air inlet thread size | 1/2" |
Sound pressure | 99 db(A) |
Sound Power | 110 db(A) |
Vibration ISO | ISO-28927-2 |
Vibration | 18 m/s² |
Vibration uncertainty (K) | 4.1 m/s² |
Handle type | D-Handle |
Square drive | #5 spline" |
Working Torque Range (fwd) | 1,220 - 2,440 Nm |
Maximum Torque (reverse) | 3790 Nm |
Free speed | 3500 rpm |
Blows per minute | 1020 |
Socket retainer | Hole |
Clutch type | 2-jaw clutch |
